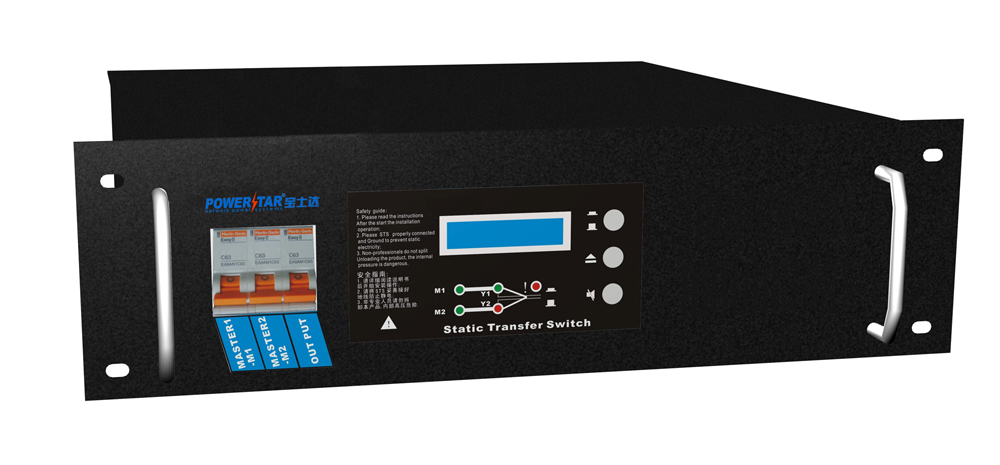

RSTS Series

·Description

RSTS series is a high-performance and high cost-effective high-end static transfer switch with new fast load switch based on digital technology. The topological convergence delay structure guarantees the accuracy of switching time and transfers load perfectly. The high-performance protection enhances the safe operation of the system and the reliability. LCD interface with a harmonious design realizes the human-machine communication; RS232 enables communication with PC, users can easily read the status of STS. With the concept of safety above all, RSTS series STS is undoubtedly your best choice.

·Features

■Fast load transfer: Capable in the environment of same phase and different phase with the fastest load transfer (6ms);
■Power priority: Configurable by the users;
■Protection: Output/input current overload protection, anti-shock and anti-lightning, the output current overlimit protection is 110% and the shock ability is 4:1;
■Fault alarm: When environmental capacity and output power fails, the device will automatically active sound and light alarm, and mute after 90 seconds;

■All the transformation is fast break-before-make. There will be no shock electricity between main batteries and all the transformation will be completed within 10 ms;
■Multi-function Interface: RS232 and others;

Models	RSTS-25A	RSTS-32A	RSTS-40A	RSTS-63A	RSTS-100A
Capacity	5.5kW	7kW	8.8kW	13.8kW	22kW
Rated Current	25A	32A	40A	63A	100A
Transfer Time	≤6ms
Transfer Method	Automatic, manual
Priority	configurable
Output Interface	Copper
Input
Voltage	M1 200V～240V±5V；M2 200V～240V±5V
Frequency	50HZ、60HZ
Environment	Same phase, different phase
Output
Voltage	200V～240V±5V
Over Current	110%
Efficiency	≥98%
Environment
Output	Air
Max Temperature	＜60℃
Temperature	0～40℃
Humidity	10%～90% (Non-condensing)
Elevation	<1000m
Physical Feature
Size (W*D*H, mm)	482*400*133 (Rack-mountable, 3U)

Products shall be subject to any changes without additional notices. The pictures are for reference only. Please adhere to the original products in case of any mistake!
